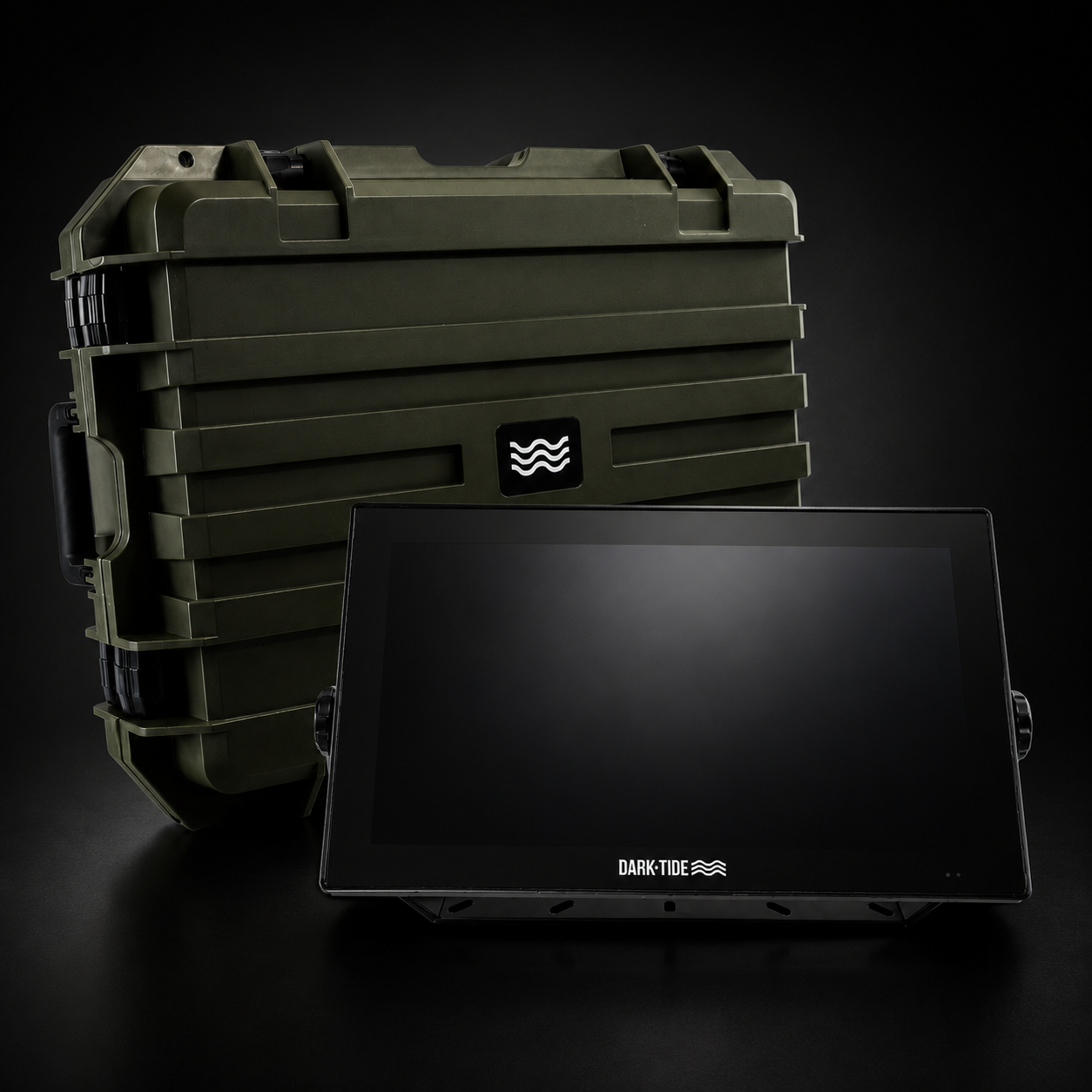

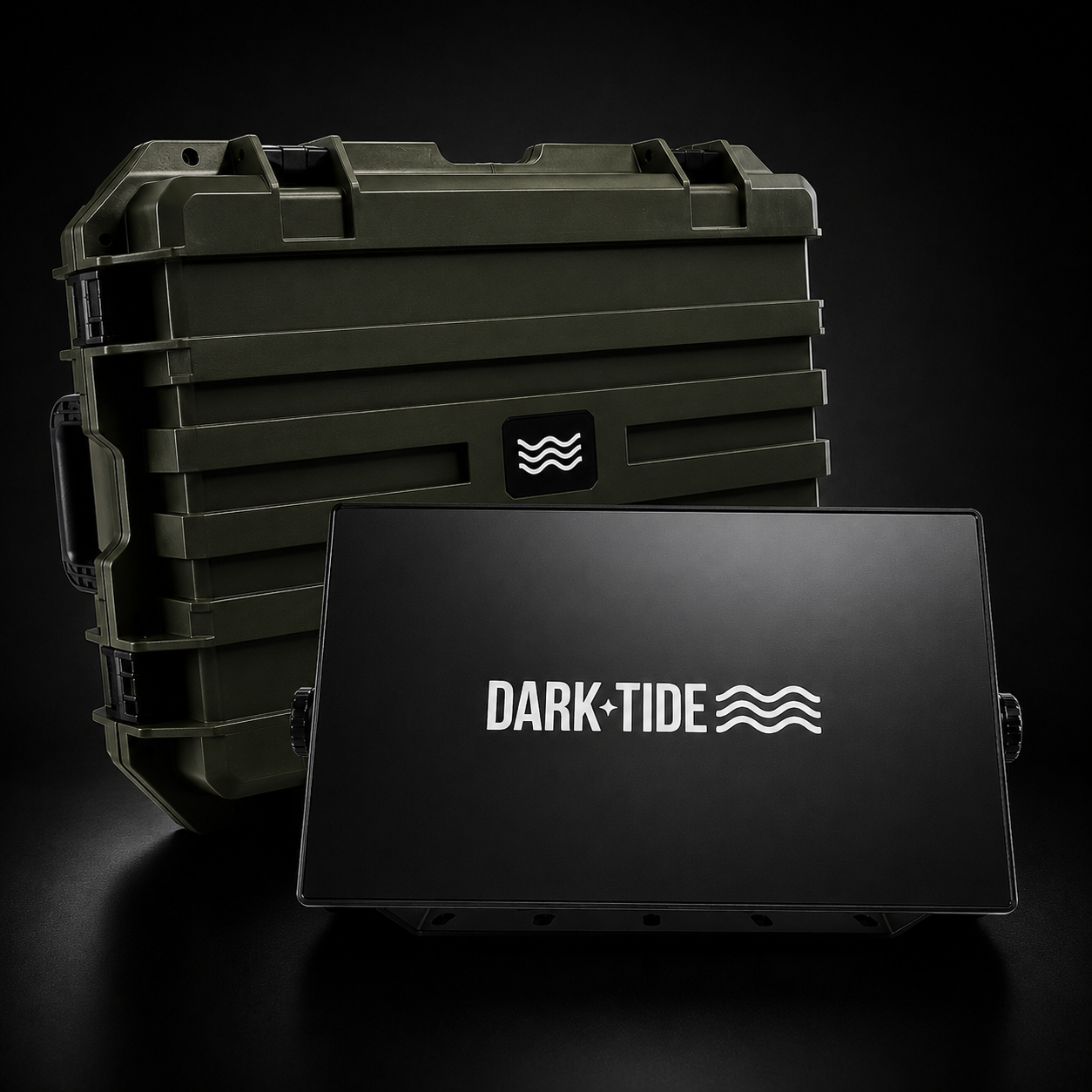

Dark Tide Marine Smart Display With Hard Case For Garmin
- Regular price
-
$3,499.00 - Regular price
-
- Sale price
-
$3,499.00
Shipping calculated at checkout.
FREE HARD CASE + SCREEN COVER
SHIPS SAME DAY BEFORE 12PM AEST
2 YEAR WARRANTY
Couldn't load pickup availability
PRODUCT DETAILS
Dark Tide Mirror Screen: Smart Marine Display with FREE IP66 Hard Case & Silicone Screen Protector!
Engineered for life on the water, the Dark Tide Mirror Screen is a high-performance smart display designed to deliver crystal-clear visuals in even the harshest marine environments.
Garmin Compatibility
Check your unit before you buy. The Dark Tide screen mirrors your Garmin's display.
| Garmin unit | On the Dark Tide screen |
|---|---|
| GPSMAP 8412 & 8416 | Full touch control |
| GPSMAP 1253 & 1653 | Full touch control |
| GPSMAP 9500 Black Box | Full touch control |
| GPSMAP 8700 Black Box | Full touch control |
| ECHOMAP Ultra 2 16" |
Mirror only You see the screen. Control stays on the Garmin. |
| Lowrance, standard ECHOMAP units, any Garmin not listed | Not compatible |
Connects by IP67 HDMI and USB (touch). 9m connection cable included.
Not sure about your unit? Send us your Garmin model and we'll check it for you.
Mirror your Garmin onto a second screen without buying a second unit. Built with a rugged aluminium casing and an IP67 waterproof rating, this display is tough enough to handle salt, spray and sun without compromising on performance.
Featuring an 18.5" Full HD panel with 1500 nits brightness, the screen stays sharp and visible even in direct sunlight. The 10-point capacitive touchscreen offers smooth, responsive control, while its anti-glare, optically bonded surface ensures durability and visibility in all conditions.
Seamless integration is made easy with IP67-rated HDMI, USB and DC connections, providing reliable connectivity to your marine electronics.
Total weight with cradle: 7.5kg
Key Features:
- 18.5" Full HD LCD (1920x1080) with ultra-bright 1500 nits display
- Durable design: Aluminium casing, UV protection, anti-discolouration treatment
- 10-point capacitive touchscreen with anti-glare surface
- IP67-rated weather resistance with IP67 waterproof connectors
- Wide operating range: -20°C to 80°C
- Low power consumption: 3 Amp @ 12V / 1.5 Amp @ 24V
- 2-Year Warranty for peace of mind
- Connection cable: 9m
Whether you're navigating, you just want dual screens or you're fine-tuning your onboard systems, the Dark Tide Mirror Screen delivers unmatched clarity, durability and control, built for fishos who demand the best.
Dark Tide Marine is an independent product and is not affiliated with, endorsed by, or associated with any marine electronics manufacturer, including Garmin Australasia Pty Ltd or any of its related entities.
LCD & TOUCH PANEL SCREEN
Panel Size
18.5" (16:9)
Native Resolution
1920x1080 HD
Brightness (CD/M2)
1500 NITS
Contrast Ratio
1200:1
View Angle
89/89/89/89 Deg
Touch Screen Type
10 points projected capacitive touch
Touch interface
USB
Surface Hardness
7H
Surface Treatment
AG (Anti Glare)
Touch Bonding
Optical Bonding
M16 WATERPROOF INTERFACE
Video Input
1*IP67 HDMI
Touch Screen Interface
1*IP67 USB
Power Connector
1*IP67 DC / 12-24V
IN THE BOX
Hard Case
HDMI/USB Power
Fuse with Fuse Holder
Dielectric Grease
Solder Connectors
2 Year Warranty
CONNECTIVITY
Garmin Compatible Devices
GPS Map 8412 & 8416, GPS Map 53 Series, Garmin GPSMAP 9500 & 8700 Black Box, Echomap Ultra 2 16" (mirror only)
